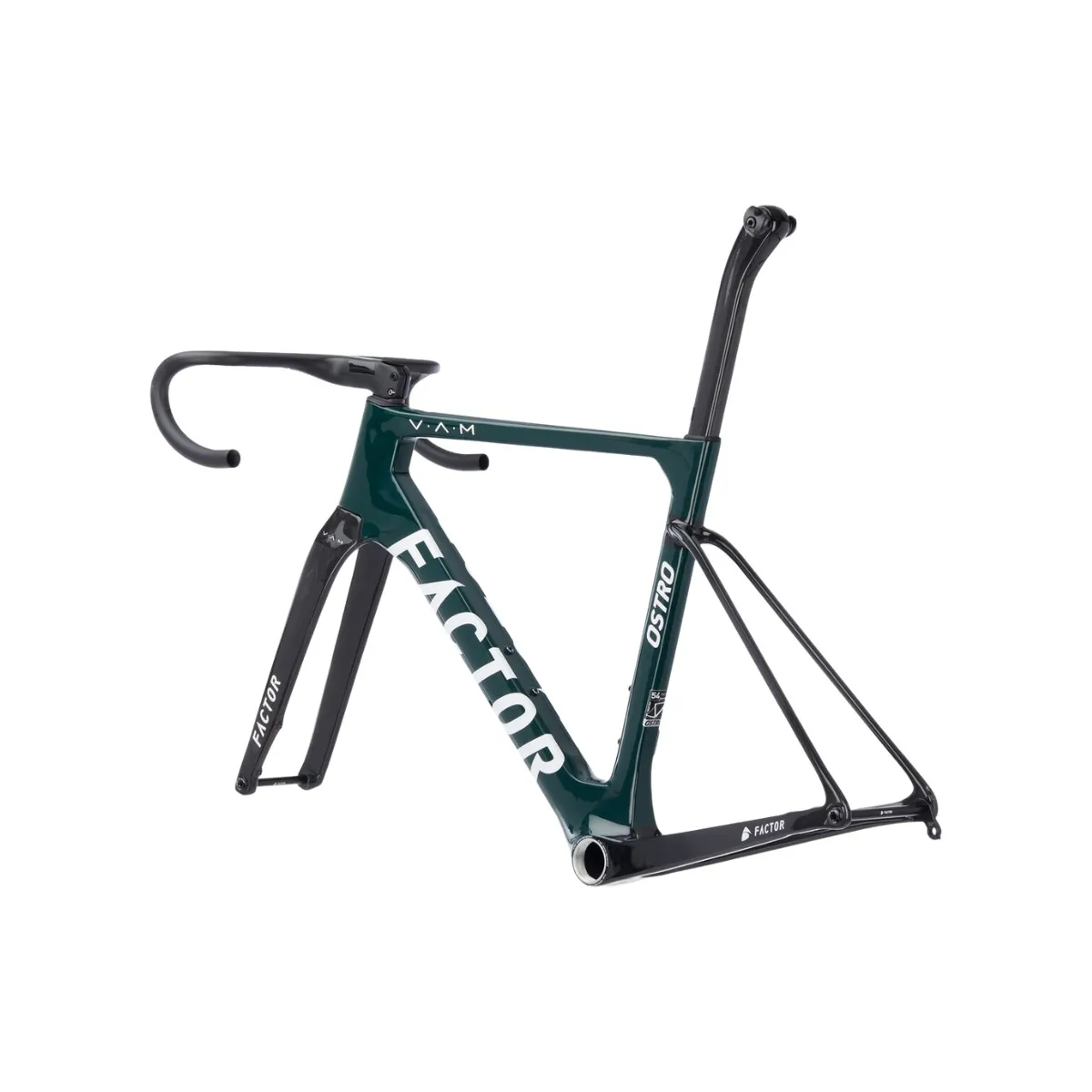

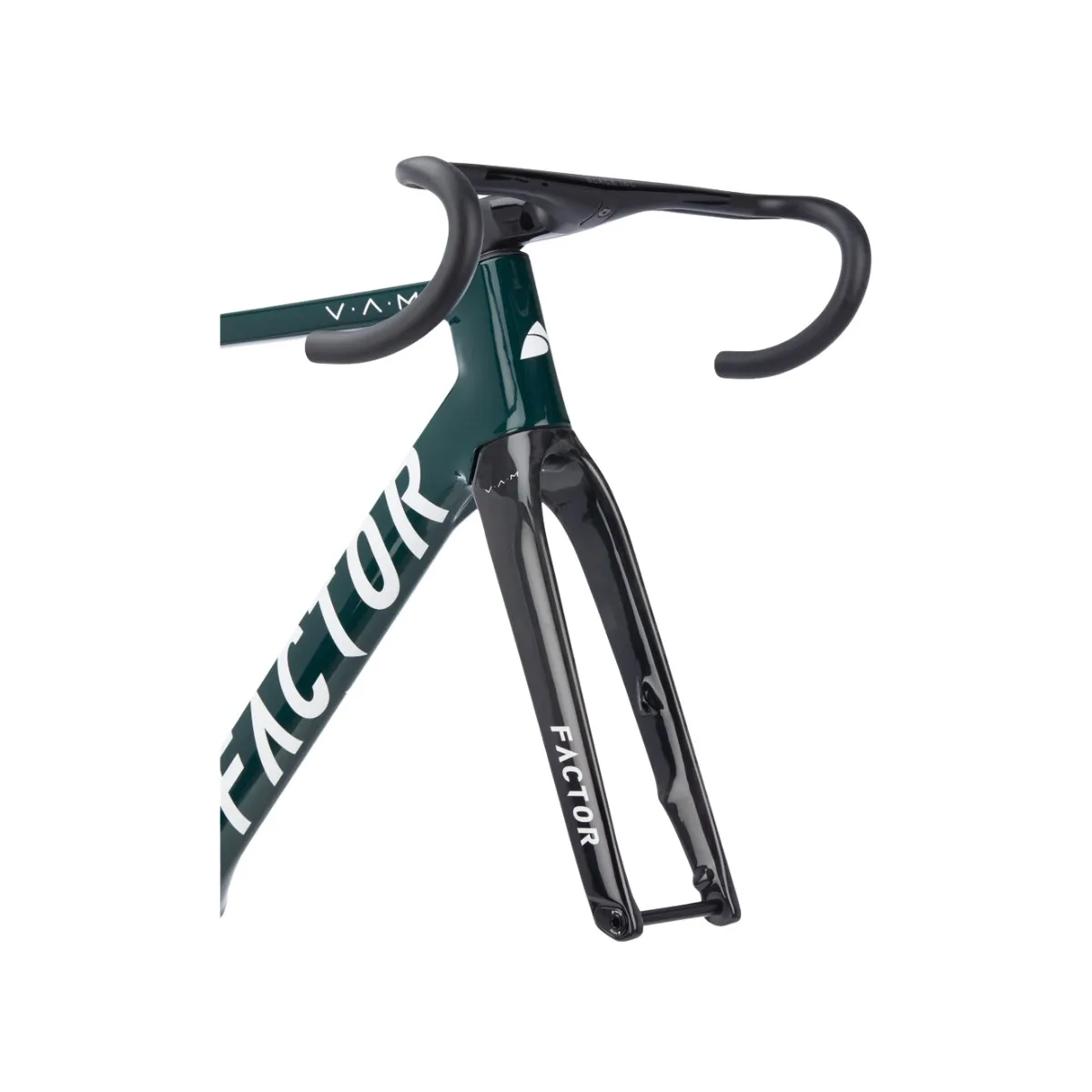

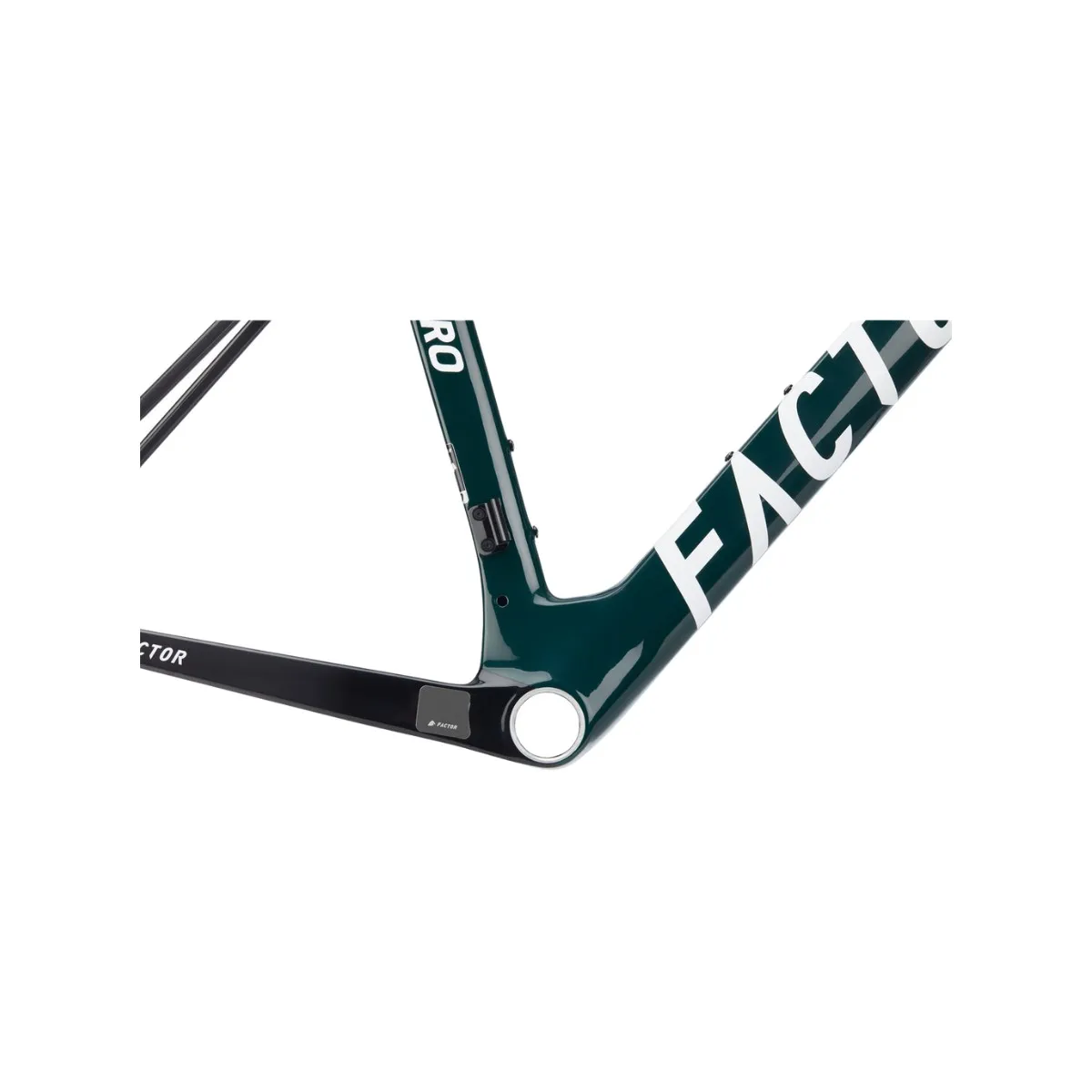

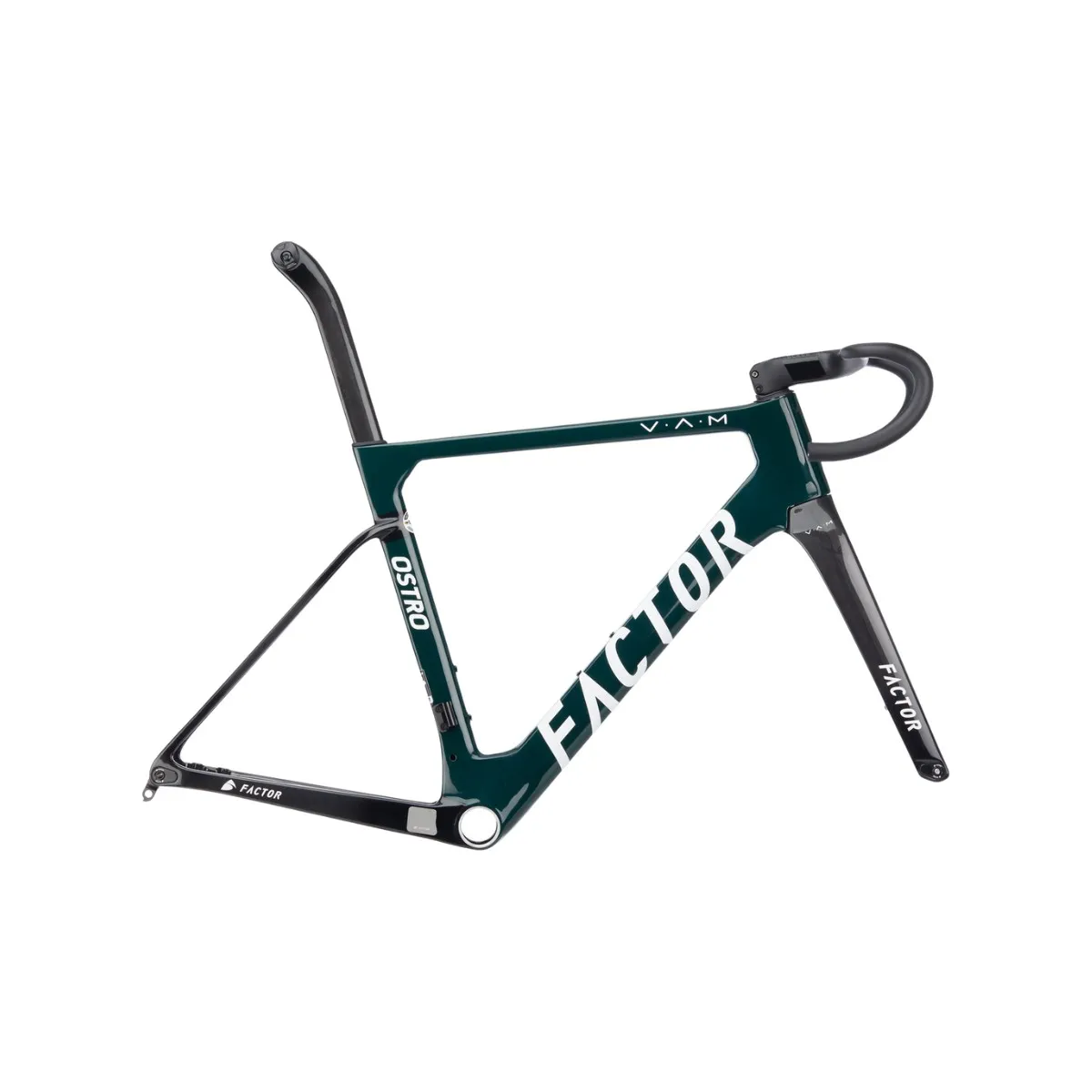

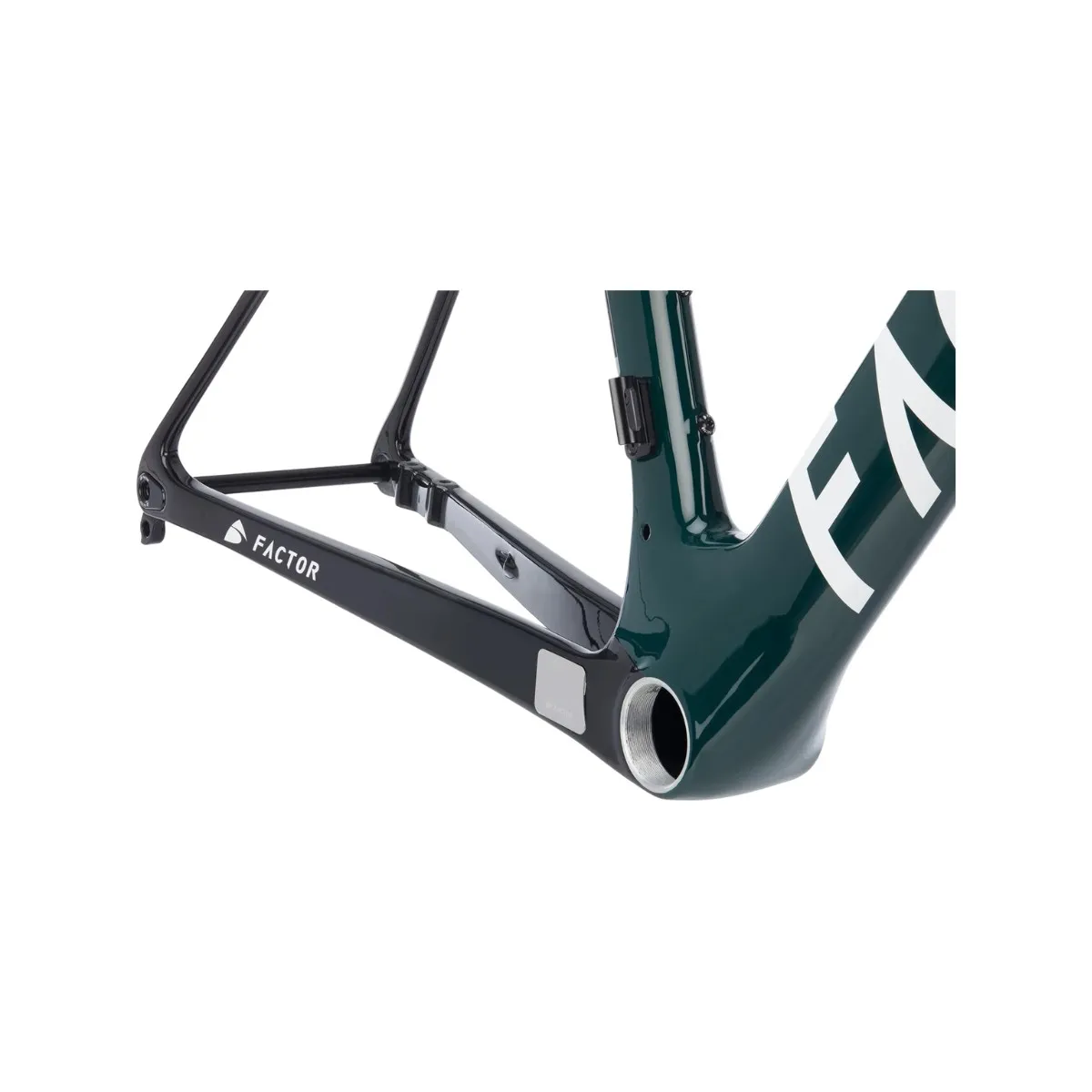

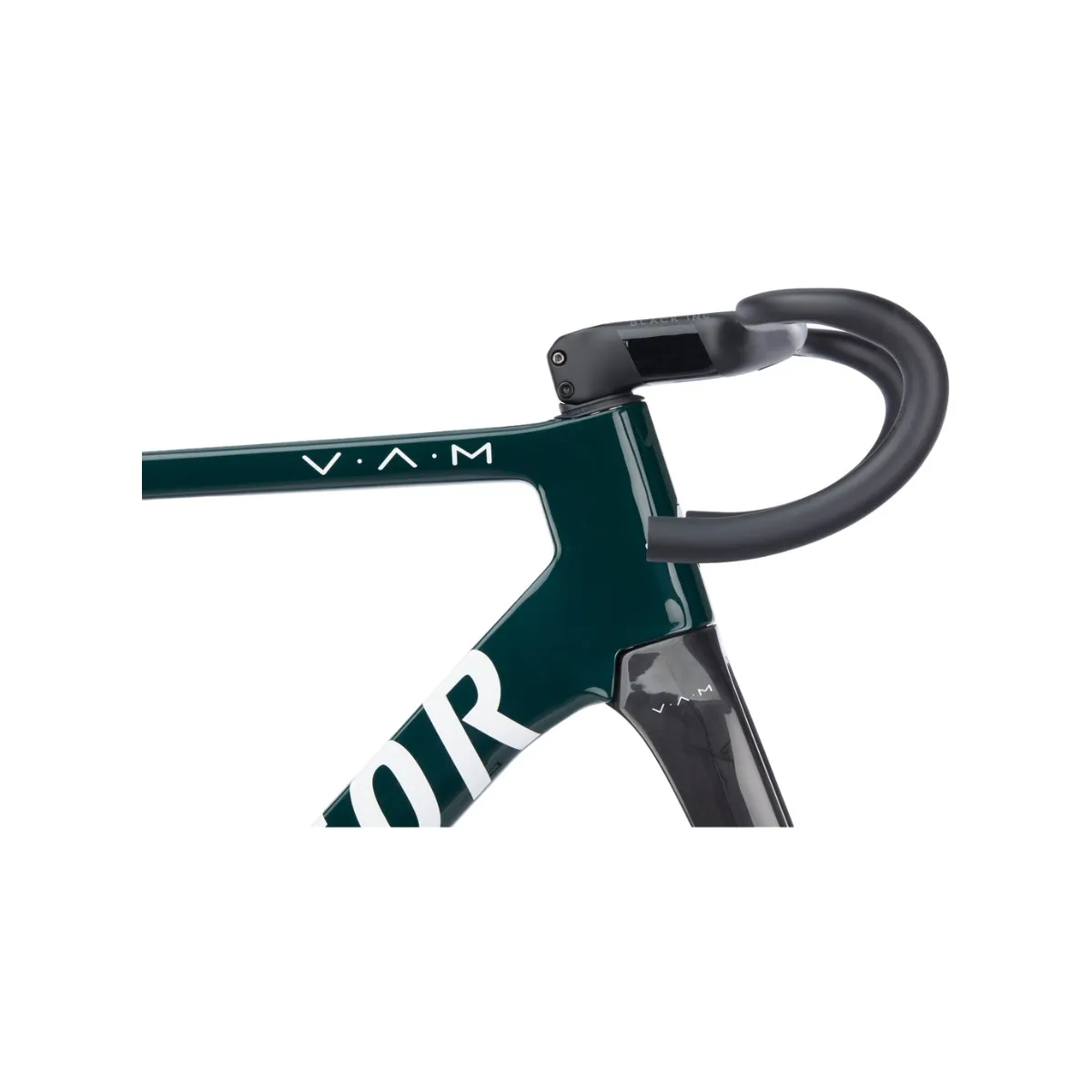

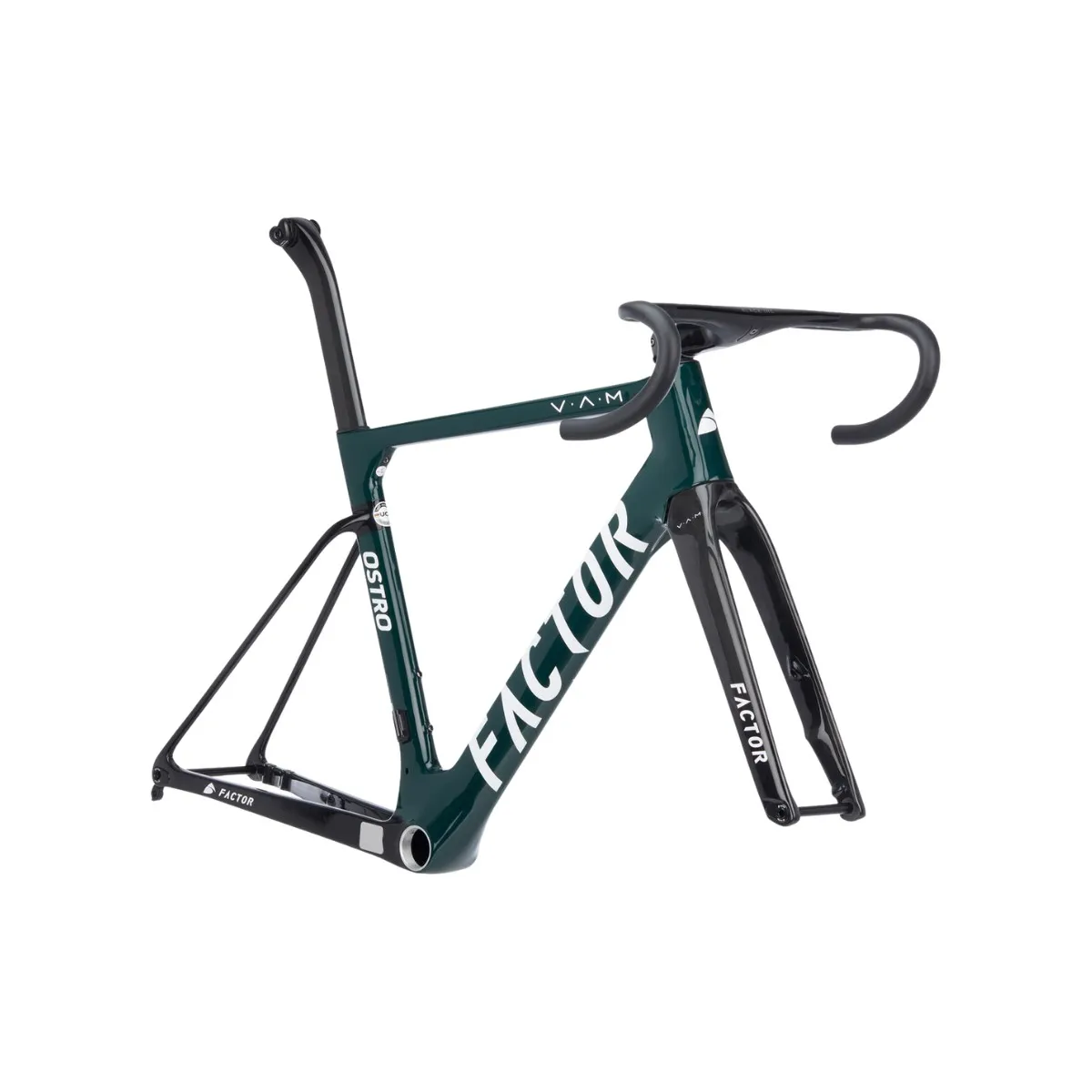

Factor Ostro VAM Disc Frameset and Racing Green Fork The OSTRO VAM Factor frame kit gives you the ability to build a super light aero carbon road bike. The fork, frame and seatpost have been optimized for a more aerodynamic design. The lightweight frame kit impresses with its extraordinary stiffness.

• Frame sizes: 54 cm

Factor's OSTRO VAM frame kit combines high performance and comfort The OSTRO VAM Factor frame kit gives you the ability to build a super light aero carbon road bike. The fork, frame and seatpost have been optimized for a more aerodynamic design. The lightweight frame kit impresses with its extraordinary stiffness. This is achieved through the use of TeXtreme carbon fibers. TeXtreme consists of very flat fibers that can be laid widely, with the consequence that very little material is used. These fibers are supported by pitch-based carbon fibers. The frame tire clearance is 32 mm. The specially designed fork is also suitable for tires up to 32mm wide. So you can confidently install wide tires, for example for more driving comfort. CeramicSpeed's high-end headset and bottom bracket reduce friction loss while riding, and thanks to Black Inc's aero handlebar power unit, this frameset lives up to its "speedy" name. " (OSTRO is the name of a wind that blows in the Mediterranean). A handlebar tape and a mount for the training computer are also included. If you want a bike for classic races like Paris-Roubaix, the OSTRO VAM frame offers you the right foundation for a fast and comfortable rider. Characteristics

• Wheel Size: 28"
• Frame Material: Carbon
• Fork Material: Carbon
• Weight limit: 120 kg Total weight
• Max Brake Disc Size: 160mm
• Max deck size: 32-622 (700x32C)
• Number of chainrings: 1 speed, 2 speed
• Maximum Chainring Size: 55T
• Colour: Flicker Black

Frame Specifications

• Wheel Standard: 12 x 142mm (Standard)
• Standard Axle: 12mm thru-axle
• Headset: IS41/28.6 - IS49/37(36) (from top to bottom)
• Bottom Bracket Standard: T47
• Bottom Bracket Shell Width: 77mm
• Chain Line: 46.5mm
• Brake Mount: Flat Mount
• Front derailleur mount: Direct Mount (High-Direct)
• Cable installation: internal electrical
• Bottle cage mounting: 2

Fork Specifications

• Fork tube: 1 1/8" - 1 3/8" tapered
• Wheel standard: 12 x 100 mm (standard)
• Standard Axle: 12mm thru-axle
• Brake Mount: Flat Mount
• Offset: 43mm, 48mm, 53mm
• Lead: 57.1mm, 57.3mm, 57.5mm
• mounting height: 363mm
• mounting width: 100mm
• Steerer Tube Material: Carbon
• Fork Crown Material: Carbon
• Fork arms material: Carbon
• Wheel axle supports material: Carbon
• Handlebar Drop: 125mm
• Handlebar Reach: 80mm
• Handlebar Stem Material: Carbon

Specifications by size Size 49cm 52cm 54cm 56cm 58cm Specifications Stack 503mm 523mm 542mm 565mm 587mm reach 370mm 376mm 384mm 392mm 401mm seat tube length 456mm 480mm 502mm 525mm 548mm Effective length of the upper tube 511mm 527mm 550mm 566mm 582mm Distance axes 968mm 968mm 982mm 985mm 1005mm Bottom bracket drop (BB Drop) 72mm 72mm 70mm 70mm 70mm seat angle 74.5º 74 th 73rd 73rd 73rd turning angle 71.7º 72.5º 72.5º 73.3º 73.3º Fork Lead (Offset) 53mm 48mm 48mm 43mm 43mm fork advance 57.1mm 57.3mm 57.3mm 57.5mm 57.5mm power length 90mm 100mm 110mm 110mm 120mm handlebar width 400mm 400mm 420mm 420mm 440mm The product includes: - 1 x Factor OSTRO VAM frame
- 1 x Factor OSTRO fork
- 1 x Factor OSTRO seat post
- 1 x CeramicSpeed 110 headset
- 1 x CeramicSpeed T47A bottom bracket
- 1 x Black Inc VAM handlebar stem
- 1 x Factor/Black Inc. support for cycle computers
- 1 Pair of handlebar tapes
